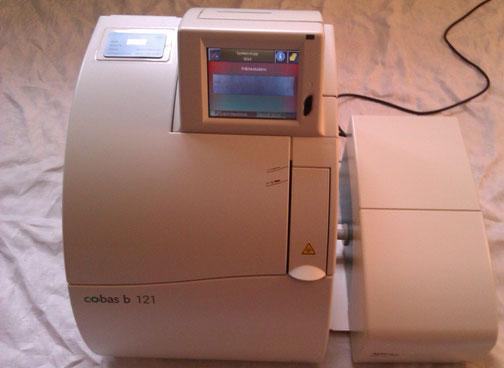

Cobas b 121 System
neuwertiges System
mit Zubehör
einsatzbereit
Preis: 2500,-€
Measured Parameters
|
Blood Gas Parameters |
Total Specified Range |
|
pH |
6.0-8.0 |
|
pCO2 |
4.0-200.0 mmHg |
|
pO2 |
0.0-800.0 mmHg |
|
Electrolyte Parameters |
|
|
Sodium (NA+) |
20.0-250.0 mmol/L |
|
Potassium(K+) |
0.2 – 20.0 mmol/L |
|
Chloride(CI) |
20.0 – 250.0 mmol/L |
|
Calcium(Ca2+) |
0.1 – 4.0 mmol/L |
|
Hemoglobin Parameters |
|
|
Hematocrit(Hct) |
10.0 – 80.0% |
|
Total Hemoglobin(tHb) |
3.0 – 25.0 g/dL |
|
Oxygen saturation (SO2) |
50.0 – 100.0% |
|
CALCULATED PARAMETERS |
|
|
H+, cHCO3-, ctCO2(P), BE, BEact, BEecf,BB, pHst, cHCO3-st,PAO2, nCa2+,Qs/Qt, P50, SO2(C), AaDO2, a/AO2, avDO2, AG, OER, Hct(c), PAO2t, Rit,pHt, PCO2, PO2, H+t, AaDO2t |
|
|
OPERATING PARAMETERS |
|
|
Typical sample volume(µL) |
< 60µL |
|
Volume limitation by sample sensor(µL) |
68 µL |
|
Time to display |
< 50 sec |
|
Sample throughput |
30/h |
|
Temperature Controlled measuring chamber |
37±0.2 °C (BG, ISE, tHb, SO2) |
|
SAMPLE TYPES |
Whole blood, serum, plasma, Dialysate, QC Material/Aqueous |
|
SAMPLE CONTAINERS |
Capillary, syringe, Roche MICROSAMPLER, ampoule adapters. |
|
CALIBRATION |
Intervals |
|
System calibration |
Every 24 hours(programmable 8, 12 or 24 hours) |
|
1 point - calibration |
Every 30 minutes (alternatively 1 hour) |
|
2 point - calibration |
Every 12 hours (programmable 4, 8 or 12 hours) |
|
Warm - Up |
Power on with calibration 30 min approx. |
|
Warm - Up |
Power fail < min < 2 min |
|
DATA PROCESSING |
|
|
Power PC |
With standard Ethernet interface |
|
Monitor |
Built in flat color LCD 5.7 inch screen(touch screen) |
|
Thermal printer |
Built in 58 mm, graphic capability |
|
Barcode scanner |
Standard accessory |
|
ELECTRICAL REQUIREMENT |
|
|
Power Rating |
100 – 240 VAC(+6% 0 10% permission to tolerance), 150W, 50 W, 50/60 Hz autoselecting |
|
Ambient temperature |
+15 to + 33° C (59 to 91.4F) |
|
Relative Humidity not condensed |
+15<T<31 °C:20-95% 31<T<33C:20-90% |
|
TEST CERTIFICATES |
|
|
FDA |
510(k) |
|
UL |
UL3101-1 |
|
CE-Conformity |
IVD-Directive 98/79/EC(EN61326-1) |
|
DIMENSIONS/WEIGHT |
Instrument only |
Optional AutoQC Unit |
|
Width |
35.4 cm(13.94 in.) |
19.5 cm(7.68 in.) |
|
Height |
46.7 cm(18.39 in.) |
19.8 cm(7.80 in.) |
|
Depth |
41.0 cm(16.15 in.) |
39.5 cm(15.55 in.) |
|
Weight |
23.0 kg(48.4 lbs) in carton |
5.9 kg (12.4lbs) |
|
Measured parameters cobas b 121 POC system |
|
|
Blood Gases |
PH, pO2,pCO2 |
|
Electrolytes |
Na=, K+,Ca2+,CI- |
|
Total Hemoglobin |
tHb |
|
Oxygen Satiraton |
SO2 |
|
Hematrocrit |
Hct |
Reliability
- Sample volume of 60 L provides results out of a small sample
- On board storage of Patient data, QC data and calibration data for up to 60 days
Speed
- Core critical care testing results within 50 seconds
- Facilitates immediate medical decision making
Flexibility
- Flexible, individually adjustable parameter configurations
- User definable display
- Fill port enhances operator safety by automatic aspiration of patient samples into the system
- Allows user single handed operation
Efficiency
- Essential critical care parameters at low costs
- Improved uptime through less maintenance
- Economy mode helps save calibration solution
- Presence of tHb/SO2 module - gives measured oxygen saturation.
Convenience
- Durable and long-life, maintenance-free sensors
- High - volume, reagent containers
- Liquid calibration instead of bulky gas tanks
- Automatic QC(1) reduces the level of operator intervention
- Flagging of CoHb & MetHb values ensures high quality tHb & SO2 readings
